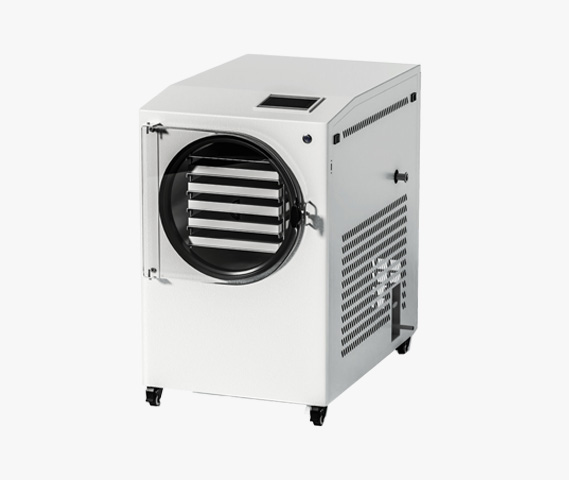

FK-15

Product Introduction

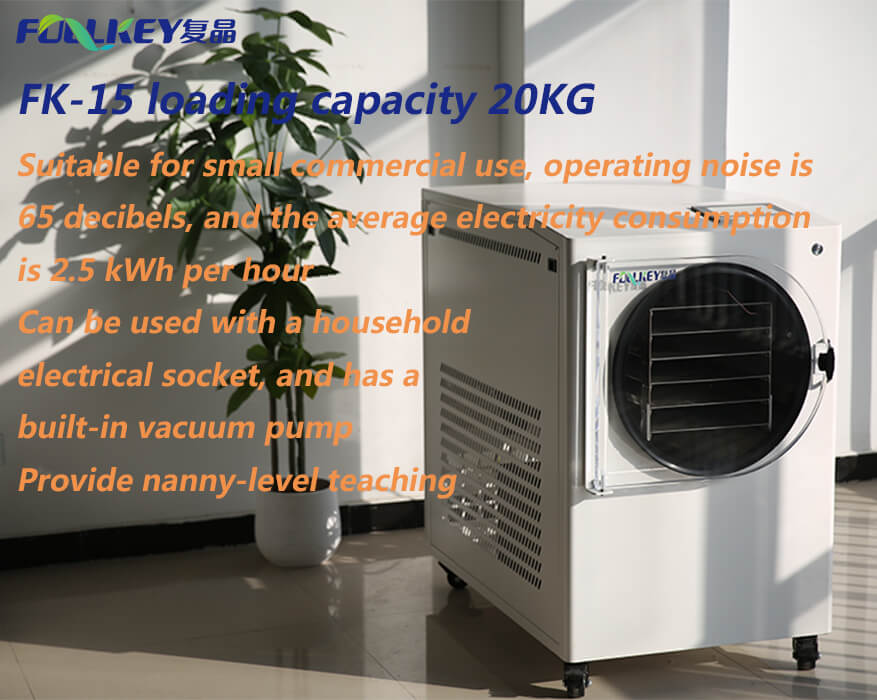

The FK-15 freeze dryer is suitable for small commercial use, with a processing capacity of about 20KG each time. We choose the Taikang compressor from France for its reliable and durable quality.

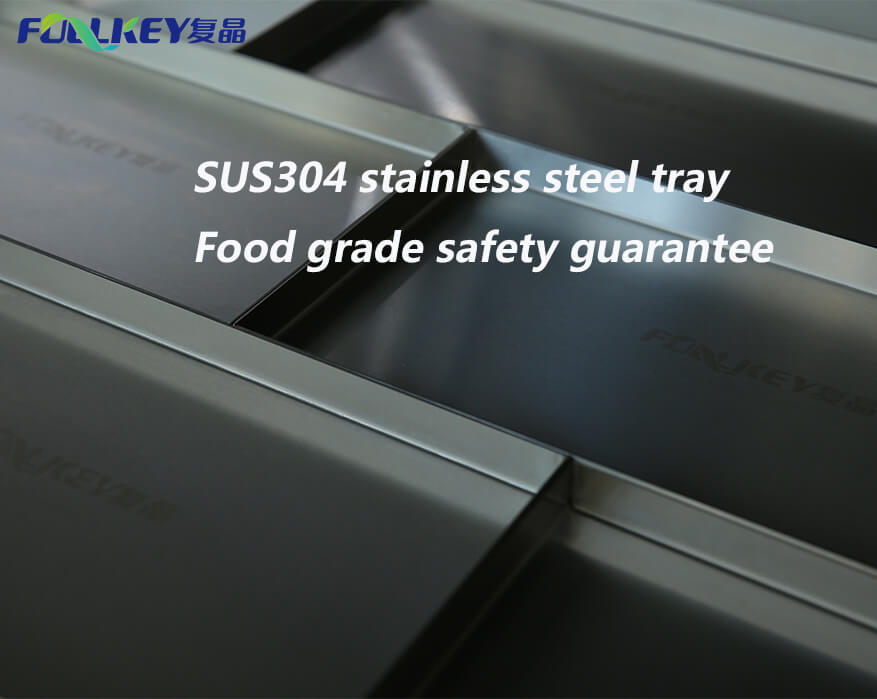

The drying chamber and trays are made of 304 stainless steel to ensure food safety.

The cold well temperature can be reduced to -60℃. The lower temperature can make the material freeze faster, which can improve the water capture capacity of the drying chamber and indirectly speed up the freeze-drying speed.

You can choose to place the vacuum pump inside the main unit or outside the main unit.

If your material is small in size (no more than 30mm in height) and has a low moisture content, it is recommended that you choose to add partitions and trays to increase the processing capacity each time.

Product Parameters

Compressor brand

French Taikang

Approximate processing capacity

20KG Depends on material characteristics

Spacing between partitions

50mm

Cold well temperature

-60℃

Shelf temperature

-35~80℃

Vacuum degree

≤5PA

Freeze-dried area

2.05m2

Installed power

2900W Not full power operation

Heating method

Electric heating

power supply

220v 50HZ+10%

Ice Condensation

20KG

Pallet size

360*850*30mm

Number of pallets

5

Dimensions

1185*740*1115mm

Packing size

1285*840*1250mm

Net weight of main unit

245KG

Packing weight

330KG

FK-15

触摸屏

外壳1

托盘

样品展示
